Q500 Plus Top-Mounted System
Advanced diuresis measuring system designed to prevent infections and provide accurate urine measurement for all patients, during transportation and for various bed types

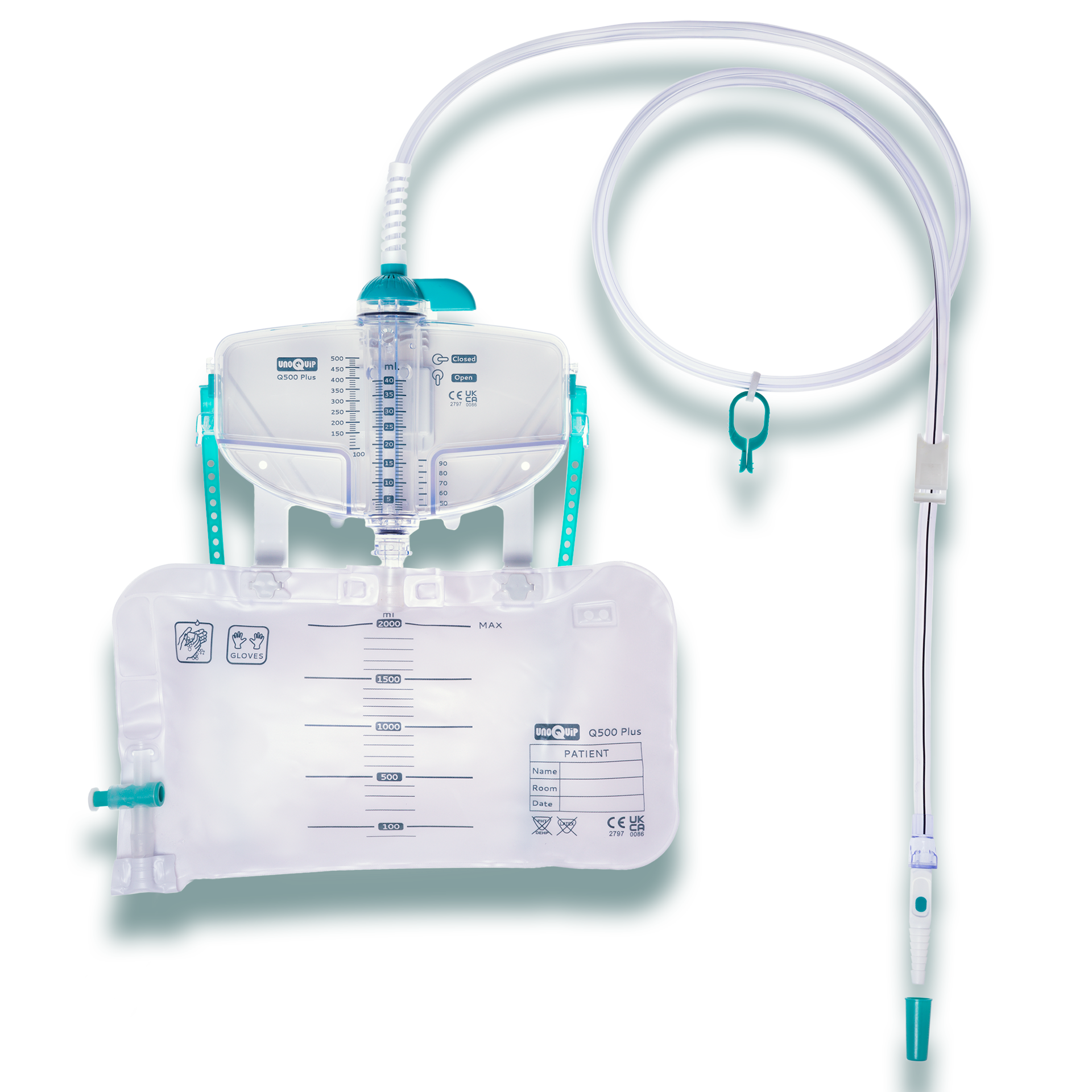

Q500 Plus Diuresis Measuring System
Safe and accurate urine measurement in critically ill patients
The Q500 Plus Diuresis Measuring System supports accurate urine output monitoring while helping to reduce the risk of retrograde infections.
Its intuitive handling supports efficient use in daily clinical workflows.
Infection Prevention
Designed to reduce the risk of retrograde infections.

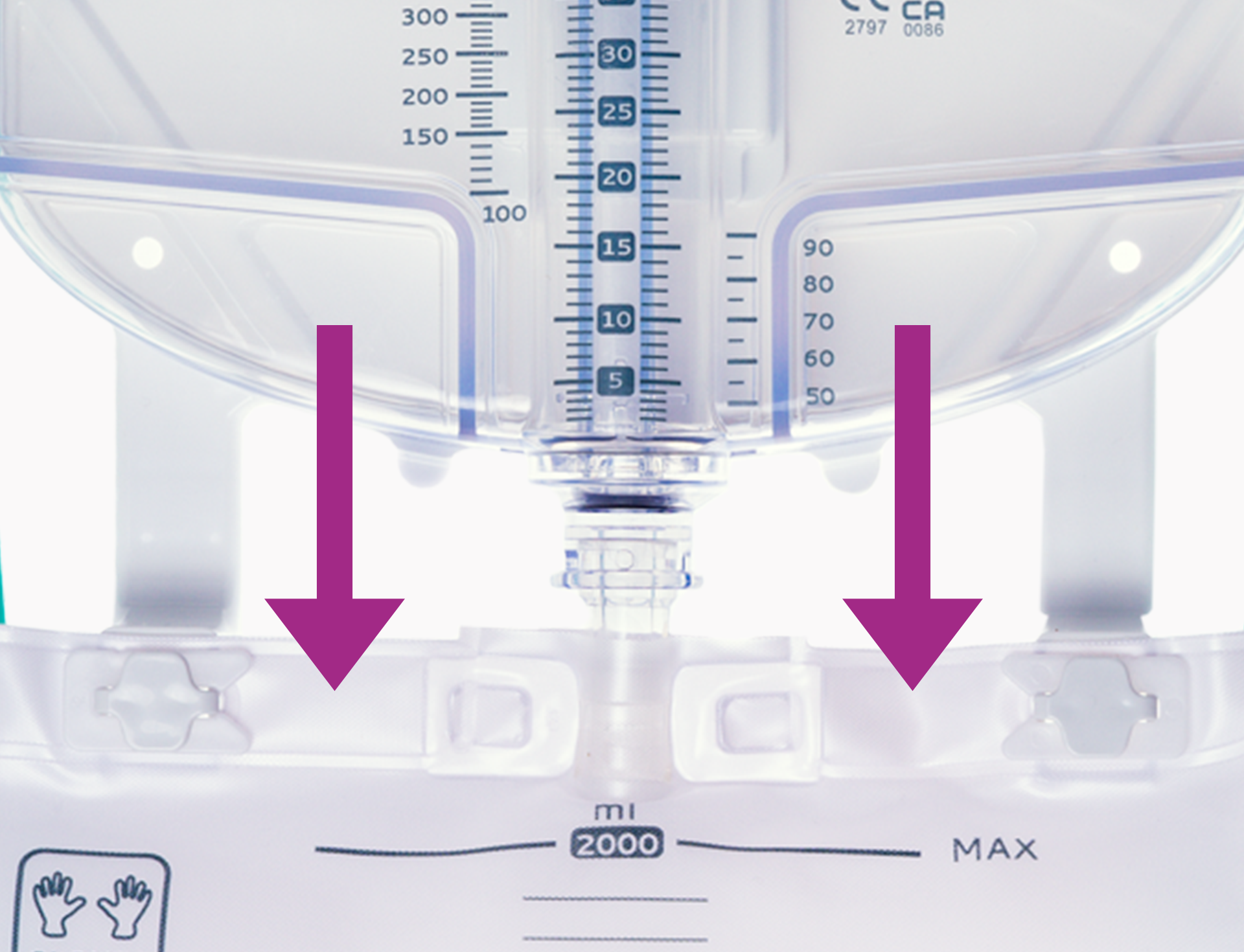

Top-Mounted System Design
Ensures one-way flow away from the patient. The chamber empties completely by gravity into the drainage bag, preventing backflow.
Top-mounted urine meters, with the measuring chamber above the collection bag, have demonstrated the lowest rates of retrograde contamination.1,2

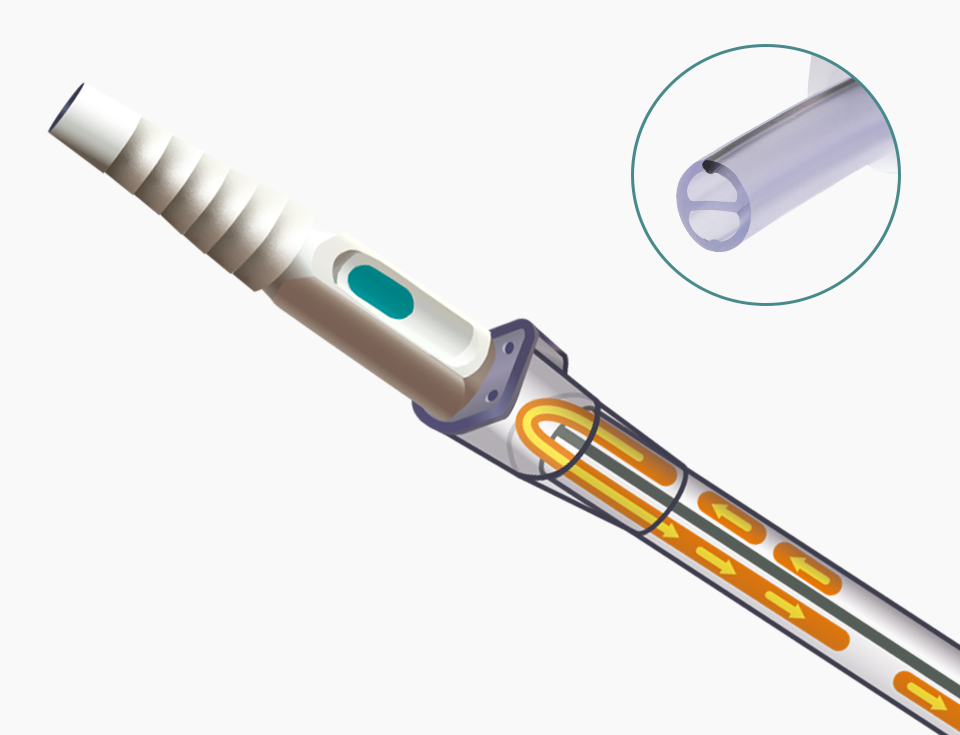

Double-Lumen Free-Flow System
Ensures continuous urine flow and prevents residual urine from remaining in the tubing, reducing the risk of bacterial migration toward the bladder.
The dual-lumen design allows urine and air to circulate freely, supporting consistent drainage.

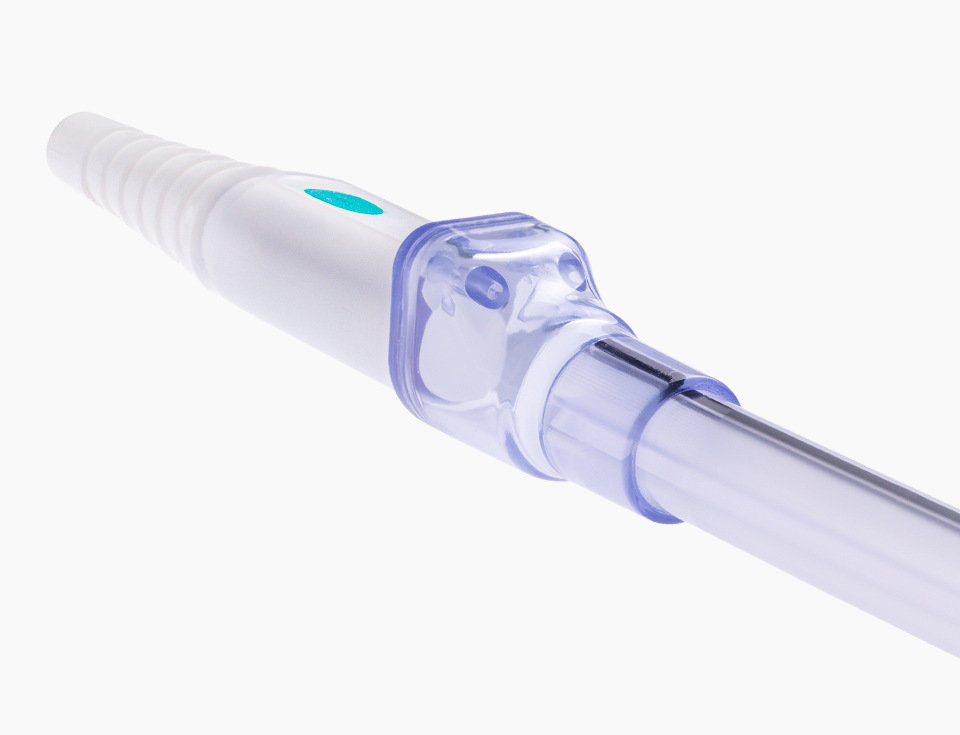

Two Non-Return Valves (NRV)
Prevent urine backflow. The NRV positioned at the top of the drainage bag prevents urine from flowing back towards the measuring chamber.
The second NRV, located before the Q•CON sampling connector, prevents fluid from flowing back into the catheter.
Accurate Measurement
Supports reliable urine output monitoring in critical care.
Clear Measuring Scale
Dark teal scale on a white background with 1ml markings enables quick and precise readings, suitable even for paediatric patients.
Double-Lumen Drainage Tube
The double-lumen tube supports free-flow circulation by allowing urine and air to circulate freely, helping prevent residual urine in the tubing and supporting complete and accurate measurement.

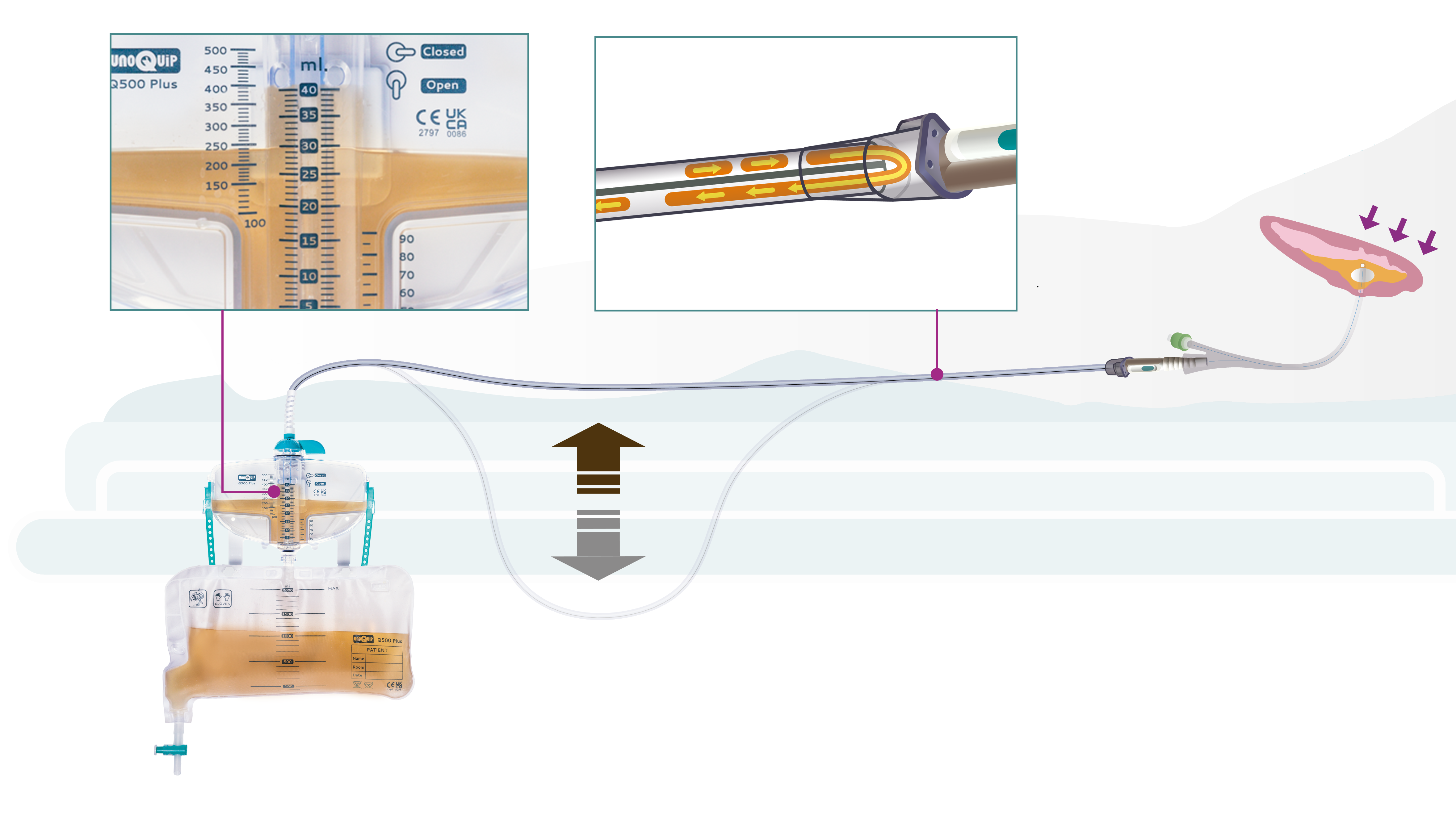

Tubing loops can be easily cleared into the measuring chamber by gently raising and lowering it, supporting complete and accurate measurement.
Ease of Use
Designed for efficient handling in demanding clinical environments.

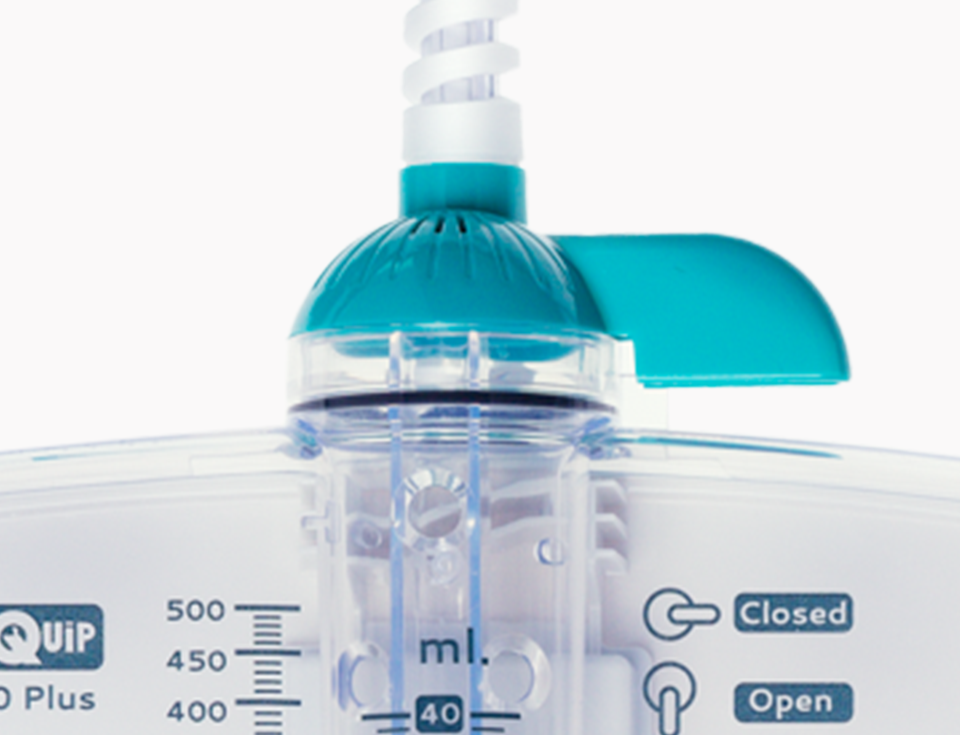

Easy Empty Tab
Allows quick and convenient emptying of the chamber with one hand, maintaining hygiene and saving nursing time.

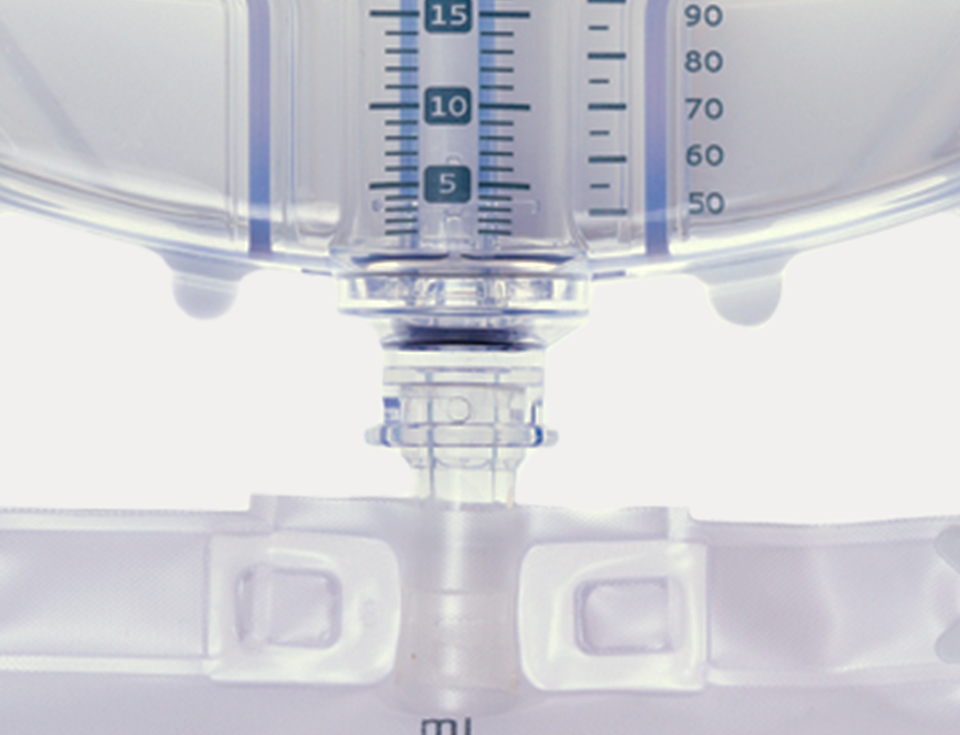

Spill-Free Chamber-to-Bag Attachment
Enables stable and spill-free connection and removal of bag via a bayonet-style “twist and-click” system.

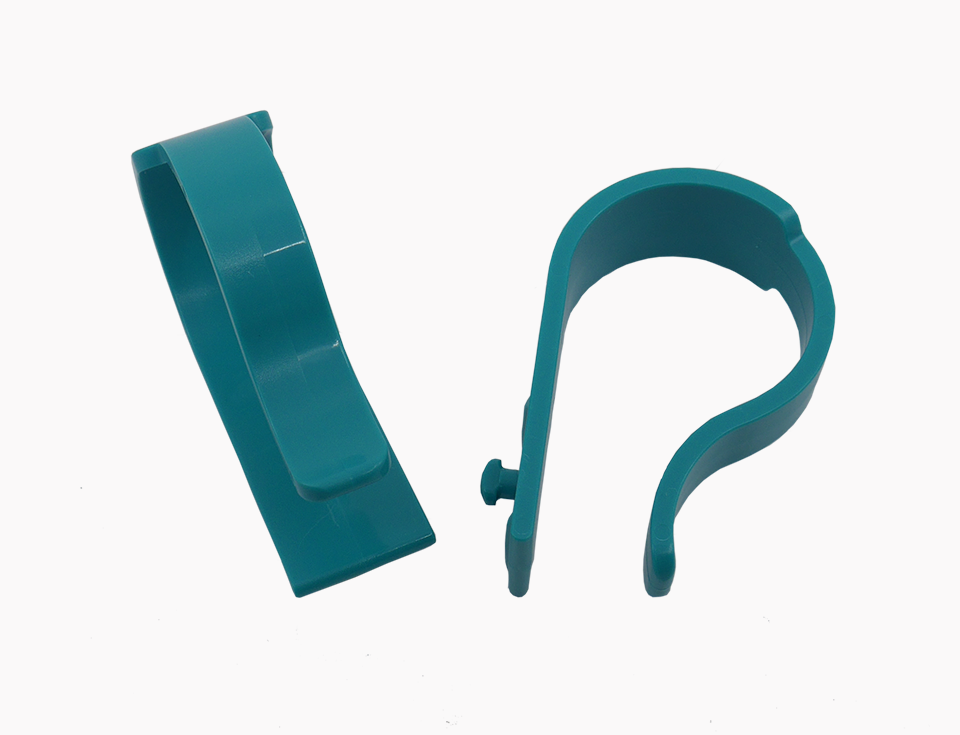

Extra Slim Round Hook
Designed to fit narrow spaces, including hospital bed sockets and common mounts, ensuring secure attachment.
EXPANDED PRODUCT PORTFOLIO
A new, expanded product range to address even more clinical challenges.

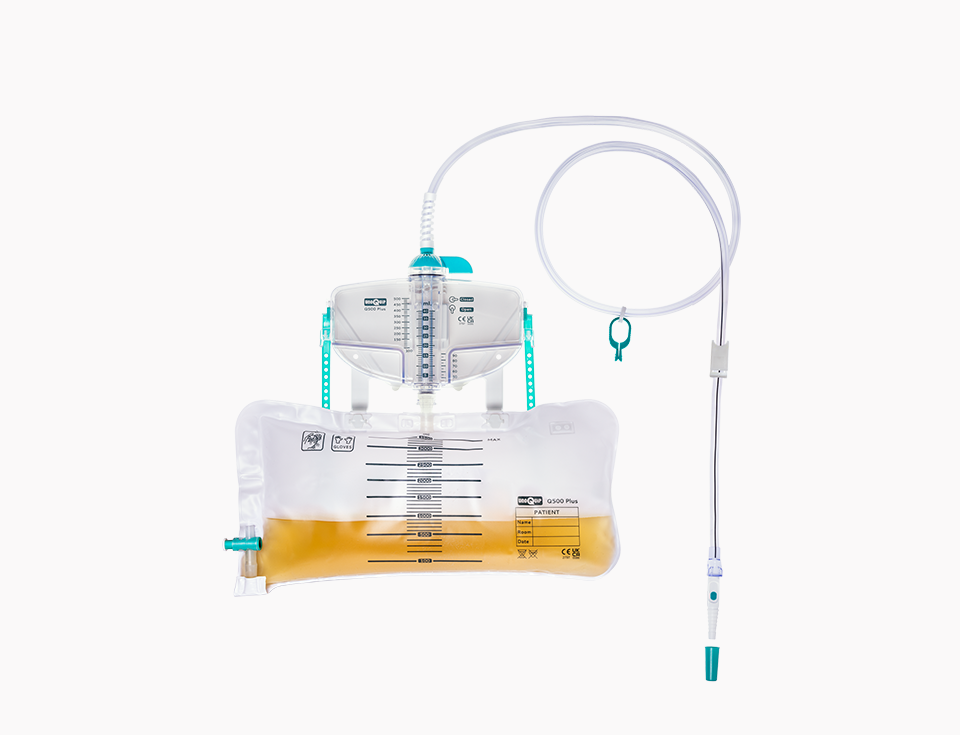

Q500 PLUS, 3.5L LOW PROFILE BAG
Large-capacity bag, saving time and resources by reducing emptying intervals.
Low-profile design keeps the system overall short and off the floor.

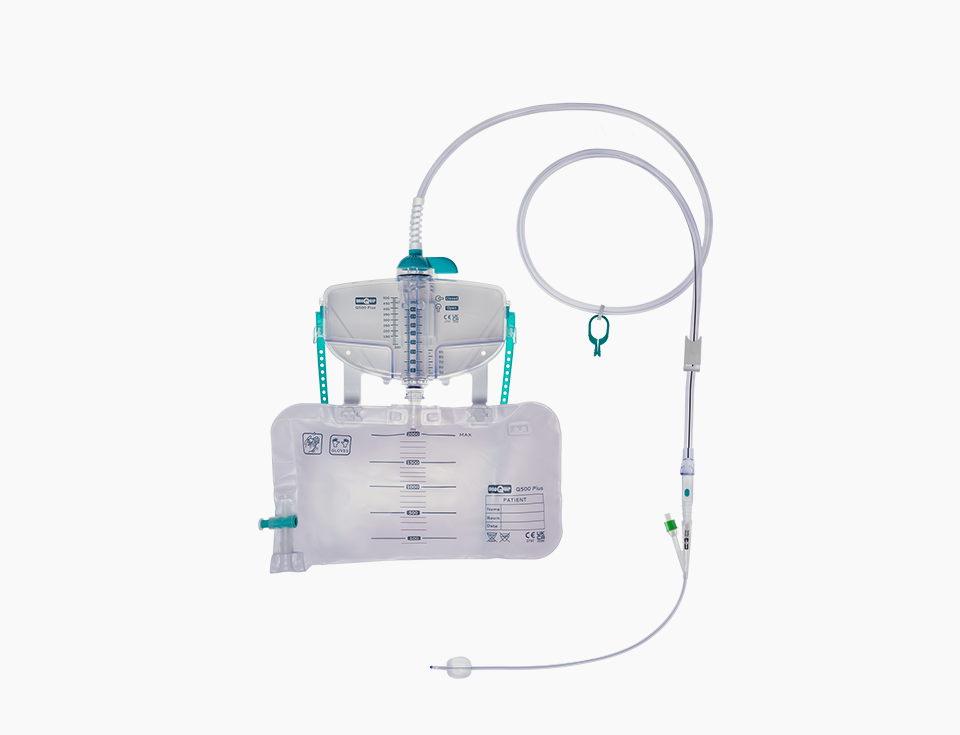

Q500 PLUS PRECONNECTED
Q500 Plus Systems with a pre-attached, long-term 100% silicone Foley catheter are designed to minimize contamination, prevent disconnection, and maintain a closed, sterile fluid pathway.

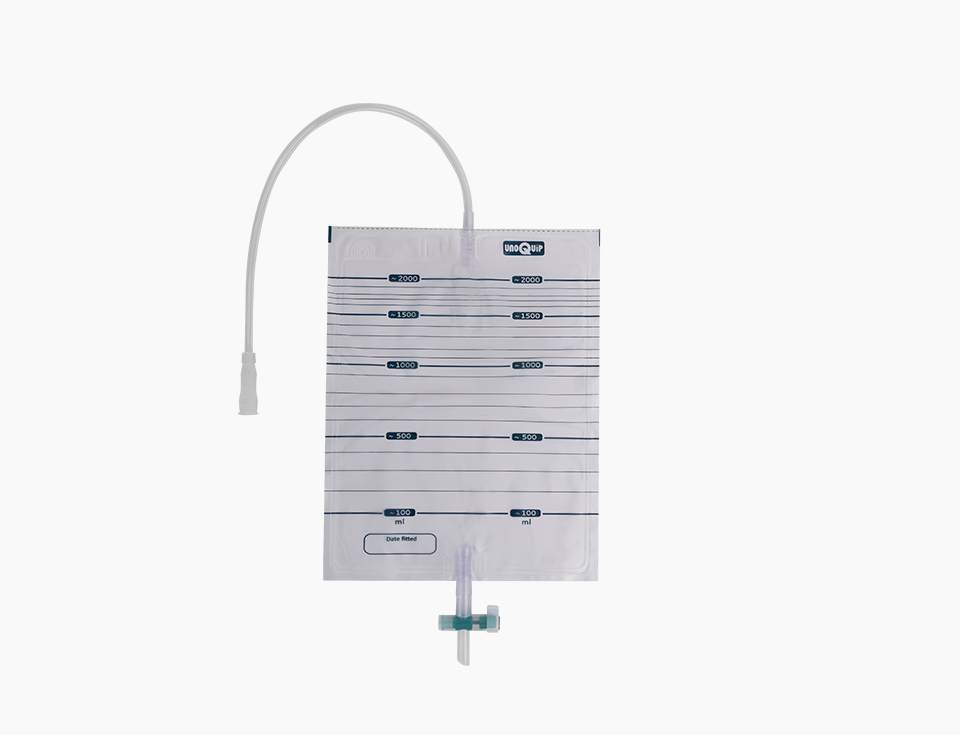

Q500 PLUS EMPTY BAG
Hygienic urine disposal with a 2L Empty Bag with non-return valve, fitted for attachment to the Q500 Plus bottom outlet.
Use-once outlet on the Empty Bag enables splash-free discharge and prevents reuse.
References
1 Rasmussen A, Frimodt-Møller N, Espersen F, Roed M, Frimodt-Møller C. Retrograde contamination and practical handling of urine meters. Br J Urol. 1996;78(2):187–191; 2 Frimodt-Møller N, Corneliussen L. Prevention of ascending contamination depends on urine meter construction. Br J Infect Control. 2005;6(5):14–17.
DISCOVER OUR PRODUCTS
Order free samples today and try them out in your clinical setting. We would be happy to assist you personally.
Please use the order form below or contact us via email at info@unoquip.com.
Products
Q500 PLUS with FREE-FLOW SYSTEM
Top-mounted Diuresis Measuring System with two Non-Return Valves, Double Lumen Tube Free-Flow System, 500ml measuring chamber, needle-free sampling port, integrated hanging straps, sheet clamp
| REF. | DESCRIPTION | PACK QTY. |
|---|---|---|
| 15810041 | Q500 Plus urine meter, 1.1m tube, 2L bag, straps, needle-free sample port, T-Tap outlet |
1/5/10 |
| 15810121 | Q500 Plus urine meter, 1.5m tube, 2L bag, straps, needle-free sample port, T-Tap outlet |
1/5/10 |
| 15810131 | Q500 Plus urine meter, 2m tube, 2L bag, straps, needle-free sample port, T-Tap outlet |
1/5/10 |
| 15810015 | Q500 Plus urine meter, 1.5m tube, 2L bag, straps, needle-free sample port (LUER-LOCK), T-Tap outlet |
1/5/10 |
| 15920121 | Q500 Plus urine meter, 1.5m tube, 2L bag, straps, hanging cord, needle-free sample port, T-Tap outlet |
1/5/10 |
| 15910041 | Q500 Plus urine meter, 1.1m tube, 2L bag, straps, round hook, needle-free sample port, T-Tap outlet |
1/5/10 |

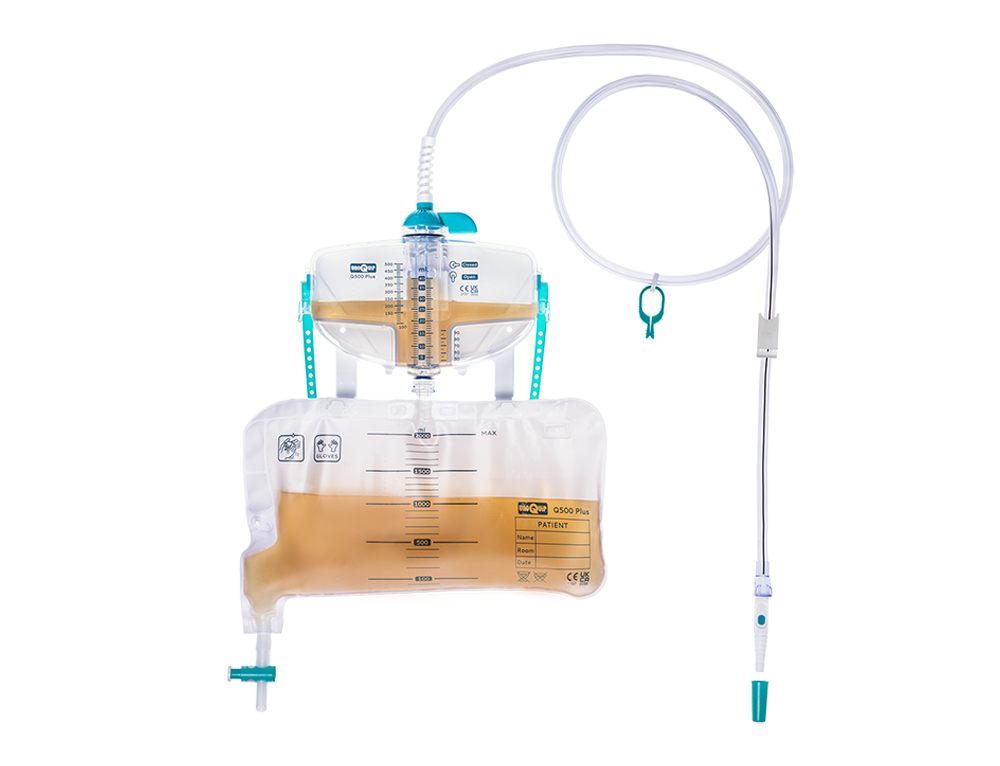

| 15910121 | Q500 Plus urine meter, 1.5m tube, 2L bag, straps, round hook, needle-free sample port, T-Tap outlet |
1/5/10 |
| 15910131 | Q500 Plus urine meter, 2.0m tube, 2L bag, straps, round hook, needle-free sample port, T-Tap outlet |
1/5/10 |
| 15910015 | Q500 Plus urine meter, 1.5m tube, 2L bag, straps, round hook, needle-free sample port (LUER-LOCK), T-Tap outlet |
1/5/10 |
| 15810101 | Q500 Plus urine meter, 1.1m tube, 2L bag, straps, needle-free sample port, Use-Once outlet |
1/5/10 |
| 15810061 | Q500 Plus urine meter, 1.5m tube, 2L bag, straps, needle-free sample port, Use-Once outlet |
1/5/10 |
| 15930121 | Q500 Plus urine meter, 1.5m tube, 3.5L low-profile bag, straps, round hook, hanging cord, needle-free sample port, T-Tap outlet |
1/6/12 |

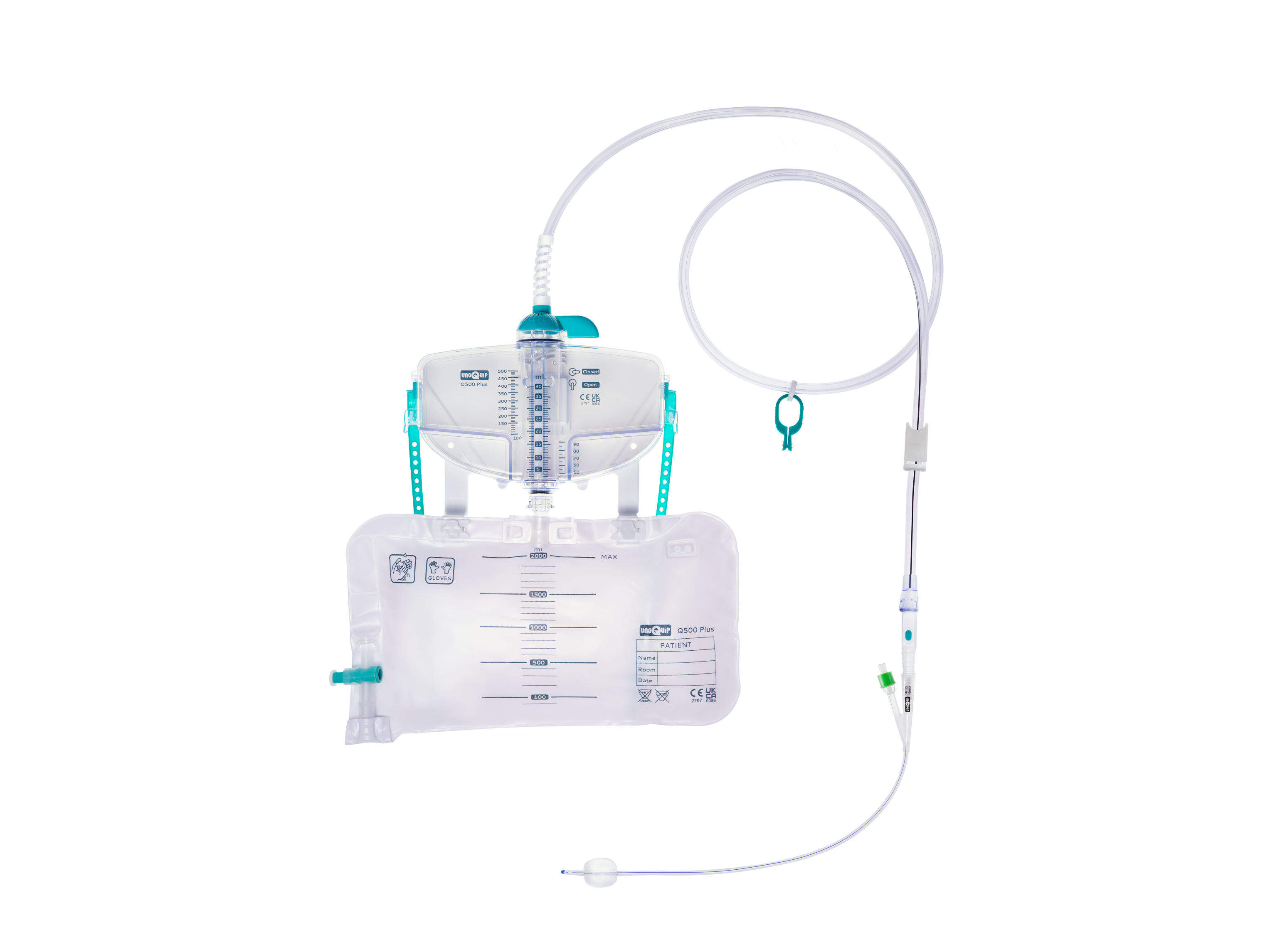

Q500 PLUS with Preconnected Silicone Foley Catheter, FREE-FLOW SYSTEM
Top-mounted Diuresis Measuring System, preconnected Silicone Foley Catheter (Nelaton, 2-way, 10ml balloon), two Non-Return Valves, Double Lumen Tube Free-Flow System, 500ml measuring chamber, needle-free sampling port, integrated hanging straps, round hook, sheet clamp
| REF. | DESCRIPTION | PACK QTY. |
|---|---|---|
| 15941121 | Q500 Plus urine meter, preconnected Silicone Foley Catheter CH 14 ,1.5m tube, 2L bag, straps, round hook, needle-free sample port, T-Tap outlet |
1/6/12 |
| 15942121 | Q500 Plus urine meter, preconnected Silicone Foley Catheter CH 16 ,1.5m tube, 2L bag, straps, round hook, needle-free sample port, T-Tap outlet |
1/6/12 |
| 15943121 | Q500 Plus urine meter, preconnected Silicone Foley Catheter CH 18 ,1.5m tube, 2L bag, straps, round hook, needle-free sample port, T-Tap outlet |
1/6/12 |
